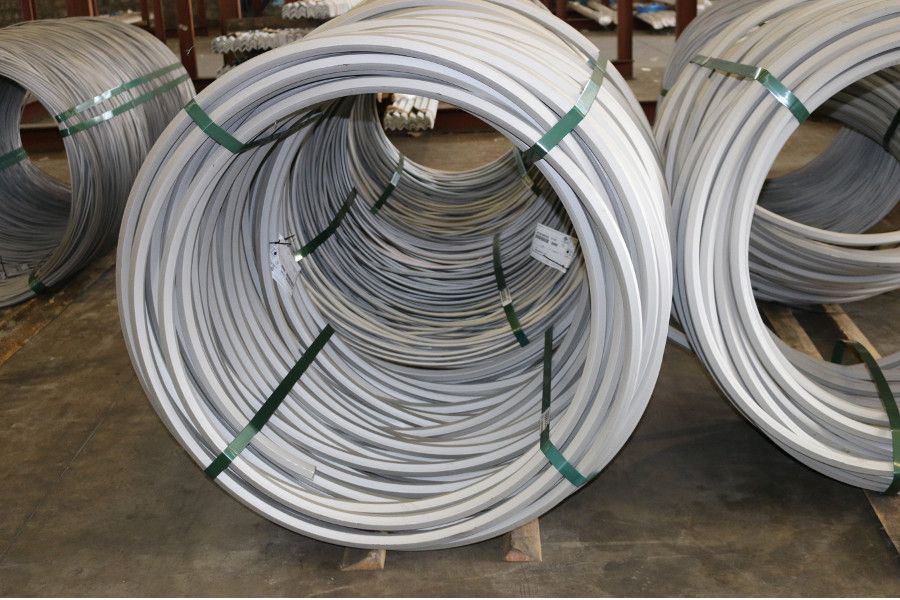

Hexagonal Wire Rod

Hexagonal Wire Rod

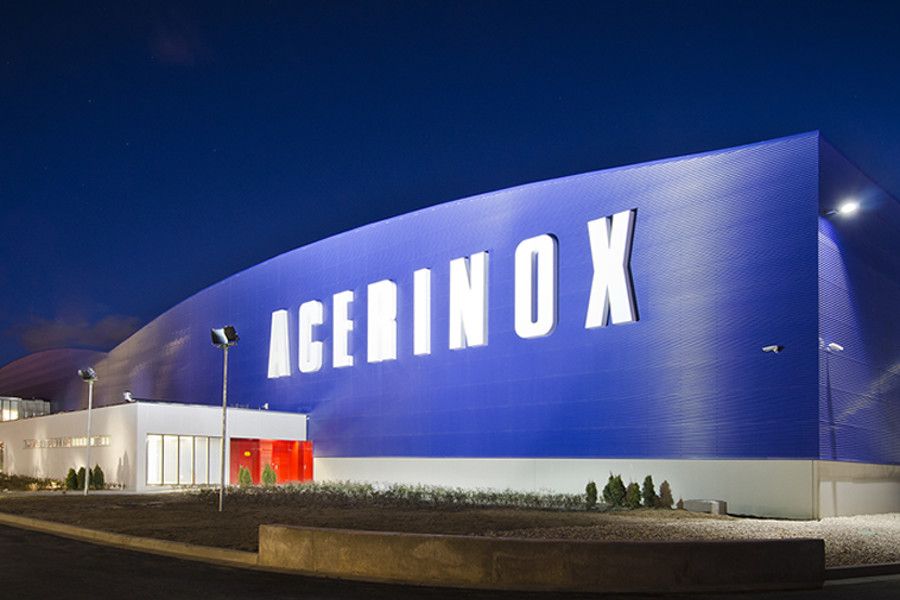

ACERINOX is known worldwide as the one of the most competitive group in the world in stainless steel manufacturing. From its constitution, it has carried out a continuous program of investments, with development of own technological innovations that, in some cases, has constituted a true landmark in the technology of stainless steel.




Description

Finish Description Finish according to 10088-2005
10 Annealed and pickled wire rod 1D
12 Annealed and pickled wire rod
 with ecological coating (pre-coat)
1D
18 Pickled wire rod (D-cooled) -



Delivery / Lenght / Tolerance

Nominal distance
 between faces (mm)
 Distance tolerance
between faces (mm)
Difference max/min
 between faces (mm)
14 ± (0,4) 80% of the total tolerance of
  the distance between faces
15 ± (0,4)
16 ± (0,5)
18 ± (0,5)
22 ± (0,5)
23 ± (0,5)
25 ± (0,5)
28.5 ± (0,6)
31.5 ± (0,6)
33.5 ± (0,8)

Dimensional specifications according to standard EN 10017.



Mechanical Properties (For guidance only)

Finish  Rm (MPa  Rp0.2%
(MPa)
 Rp1.0%
(MPa)
 A5
10/12 450-690 >200 >250 >45
18 550-800 >300 >350 >30



Important

Data subject to changes according to international standards and working practices.

Other grades on request: customer.service@acerinox.com
