Peeled Bar

Peeled Bar
ACERINOX is known worldwide as the one of the most competitive group in the world in stainless steel manufacturing. From its constitution, it has carried out a continuous program of investments, with development of own technological innovations that, in some cases, has constituted a true landmark in the technology of stainless steel.

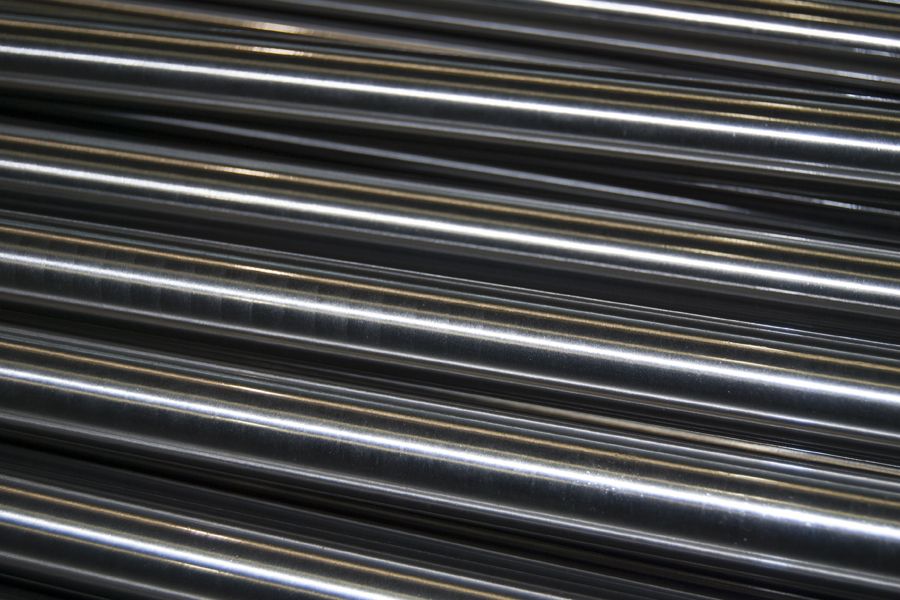

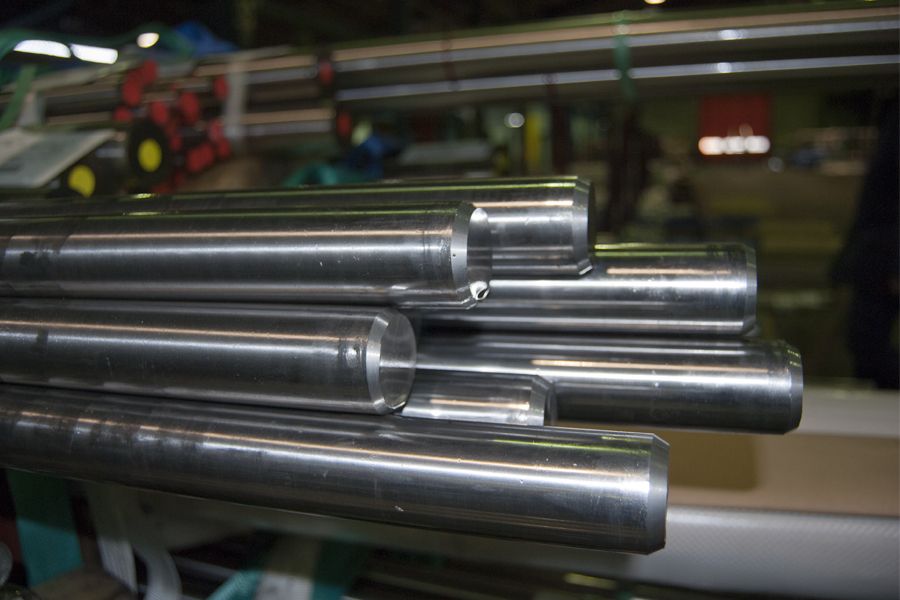

Hot rolled, peeled, straightened and cut product.


Description

Finish Description Finish according
to 10088:2005
30 Peeled round bar  1X
31 Peeled round bar   2H
33 Peeled and polished round bar  2B
34 Peeled, centerless ground
and polished round bar
 2G



Delivery / lenght / Tolerance

Ø Length Tolerance (mm) Straightness Ovalshape
22.51-40.30 3000-7000 +25 1 máx. 50% del intervalo de tolerancia
0.31-85.72 3100-4100
5100-6100
+100
85.73-110.30 3100-4100
5100-6100
+200

Specifications may vary according to grade and finish. Other dimensions on request.

Short bars: 10% allowed (minimum length 2800 mm).



Mechanical Properties (For guidance only)

Ø  Rm (MPa) Rp0.2%   Rp1% A5 %
22.51-110.30 480-690 >250 >300 >40



Size Tolerance

Ø Finish
30
Finish
31
Finish
32
Finish
34
22.51-30.00 h11-k11-k12 h11-h10 h9 h8-h9
30.01-40.30 h11-k11-k12

h11-h10

h9 h8-h9
40.31-90.49 h11-k11-k12 h11-h10 h9 h8-h9*
90.50-110.30 h12-k12 - - -

* to 85,72 mm

Other tolerances, ASTM, k, etc., whenever the interval will be the same or higher than the tolerance on the previous table.



Important

Data subject to changes according to international standards and working practices.

Other grades on request: customer.service@acerinox.com
