Toyota Launches New Model RAV4 PHEV

Toyota Launches New Model RAV4 PHEV

Toyota has launched the new model RAV4 plug-in hybrid electric vehicle (PHEV) through dealerships in Japan on June 8, 2020.

Since its debut in 1994, RAV4 has pioneered the crossover SUV market, and remains the market leader. The fifth generation RAV4 was released in April 2019. It has been popular with many customers, thanks to the superior driving performance delivered by three types of 4WD system, including Dynamic Torque Vectoring AWD; design which fuses refinement with SUV-like power; spacious luggage storage; and an interior designed for convenience, making it suited to diverse situations.

The new RAV4 PHEV aims to boost the fun-to-drive appeal of RAV4, adopting the newly developed Toyota Hybrid System (THS II). The front motor and inverter achieve more powerful output than the RAV4 hybrid system, and the combination with the new model, high-capacity, high-output lithium-ion battery achieves maximum system output of 225 kW, facilitating sporty, powerful driving. It also achieves a BEV driving range of 95 kilometers, top level in its class, for greater driving pleasure in BEV mode, thus also realizing superior environmental friendliness.

Sales Outline

Monthly sales target for Japan 300 units

Production Plant

Nagakusa Plant, Toyota Industries Corporation

Manufacturer's suggested retail prices

Price range4,690,000 yen to 5,390,000 yen

Grade Hybrid system Driveline

Price*
(Japanese yen)

G THS II Plug-in with reduction gear
(A25A-FXS 2.5-liter Dynamic Force Engine)
E-Four 4,690,000
"Z" 4,990,000
BLACK TONE 5,390,000

* Includes consumption tax; Different pricing applies for Hokkaido and Okinawa; Does not include recycling fees.

Vehicle outline

The pleasure of driving, unique to PHEV

Through installation of the newly developed THS II Plug-in system, Toyota strives for even greater driving pleasure. The new RAV4 achieves maximum system output of 225 kW (306 PS), and maximum employment of the motor enables instantaneous acceleration and deceleration. In addition, with the assistance of the engine unique to PHEV, it achieves an acceleration from 0 - 100 kph in 6.0 seconds.

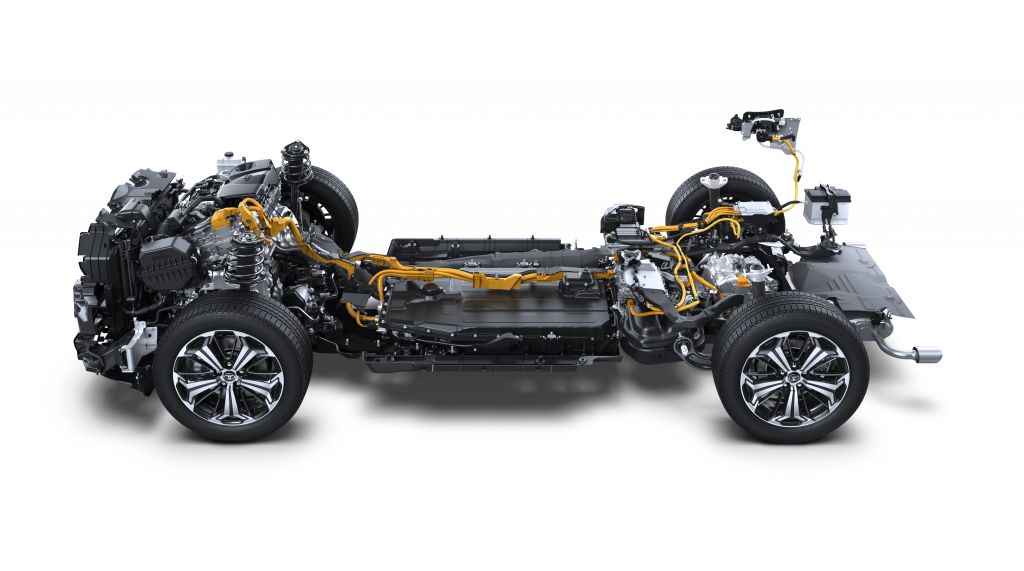

It adopts the TGNA platform (GA-K) and is equipped with a high capacity lithium-ion battery installed under the floor in the center of the vehicle. Efforts were made to realize a low center of gravity and optimal weight balance. It achieves high quality ride comfort focused on the driver and superior control stability.

Main specifications of THS II Plug-in with reduction gear



Engine Model   A25A-FXS
Displacement (cc) 2,487
Maximum output (kW[PS]/rpm) 130[177]/6,000
Maximum torque (N・m[kgf・m]/rpm) 219[22.3]/3,600
Front motor Model   5NM
Maximum output (kW[PS]) 134[182]
Maximum torque (N・m[kgf・m]) 270[27.5]
Rear motor (E-Four) Model 4NM
Maximum output (kW[PS]) 40[54]
Maximum torque (N・m[kgf・m]) 121[12.3]
System maximum output   (kW[PS]) 225[306]
Traction battery Type   Lithium-ion battery
Capacity (Ah) 51
Total voltage (V) 355.2
Total electric power (kWh) 18.1

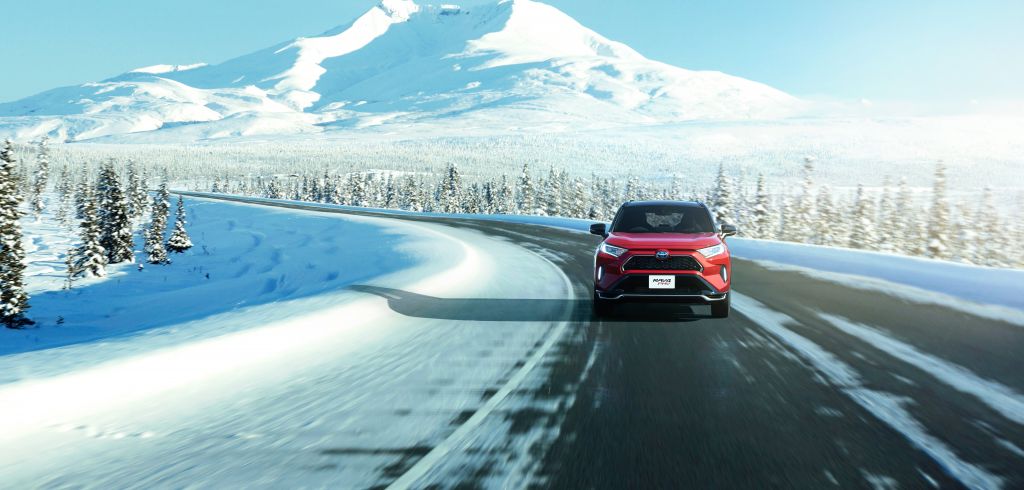

Thanks to the E-Four electric 4WD system, the power produced by the newly developed plug-in hybrid system is fully distributed between all four wheels. In addition to achieving superior driving stability, a greater sense of stability when cornering, or driving in snow or rain, is enhanced.

It also realizes a BEV driving range of 95 kilometers on a fully charged battery, and a hybrid fuel economy of 22 km/L. The RAV4 gasoline tank has a capacity of 55 L and boasts an incredible cruising range of 1,300 kilometers or more.

HEV driving mode, using the engine, leverages battery power to control engine revs, thereby reducing engine noise during acceleration. It provides a high quality driving space for not only BEV but also HEV mode driving.

Toyota has aimed for an even quieter motor-led driving performance, and introduced careful noise reduction measures into the body. In addition to optimal placement of sound insulation materials, the extent of dash panels and floor sound insulation has been expanded. Gaps at the joints have been carefully filled to prevent sound from penetrating the vehicle. Wind noise is also reduced through the use of a powerful soundproofing glass.

Adequate temperature of the lithium-ion battery is maintained using an air conditioning coolant. Reliable battery performance is enhanced by avoiding use under high temperature that accelerates deterioration and by appropriately controlling the battery charge.

The air conditioner employs a heat pump system that uses the heat from external air to raise the temperature of engine coolant water to heat the vehicle interior. When the air conditioner is on, it controls power consumption and reduction of the BEV driving range.

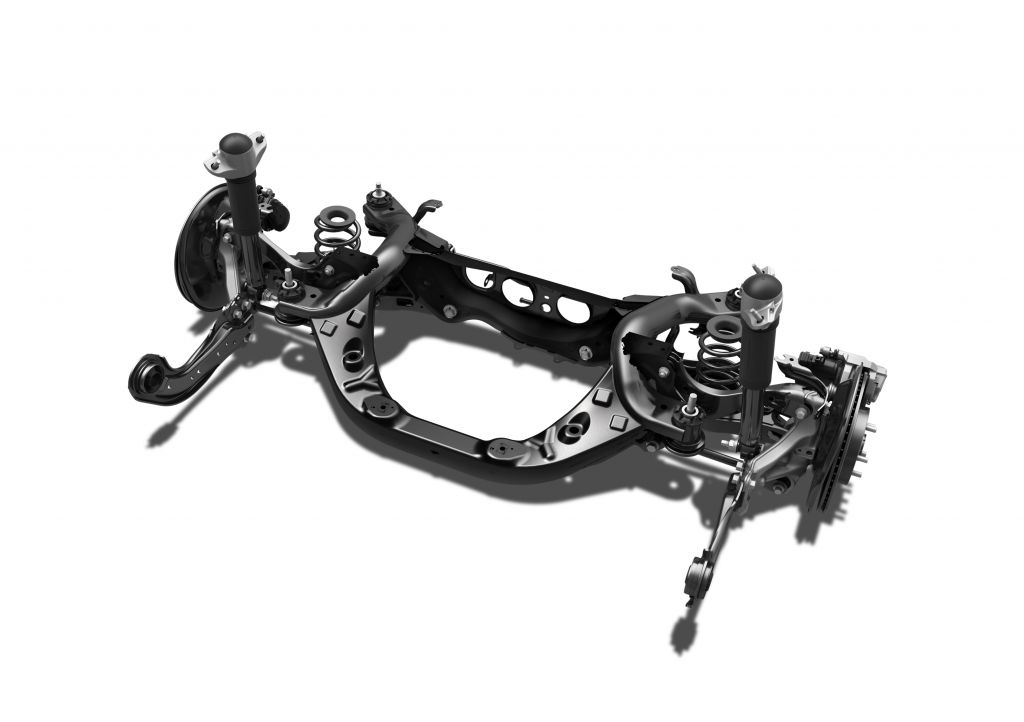

The vehicle also optimizes friction and damping force of the front and rear shock absorbers. Furthermore, it achieves superior control stability when cornering, for a solid, smooth ride comfort.

Enhancing the convenience, unique to PHEV

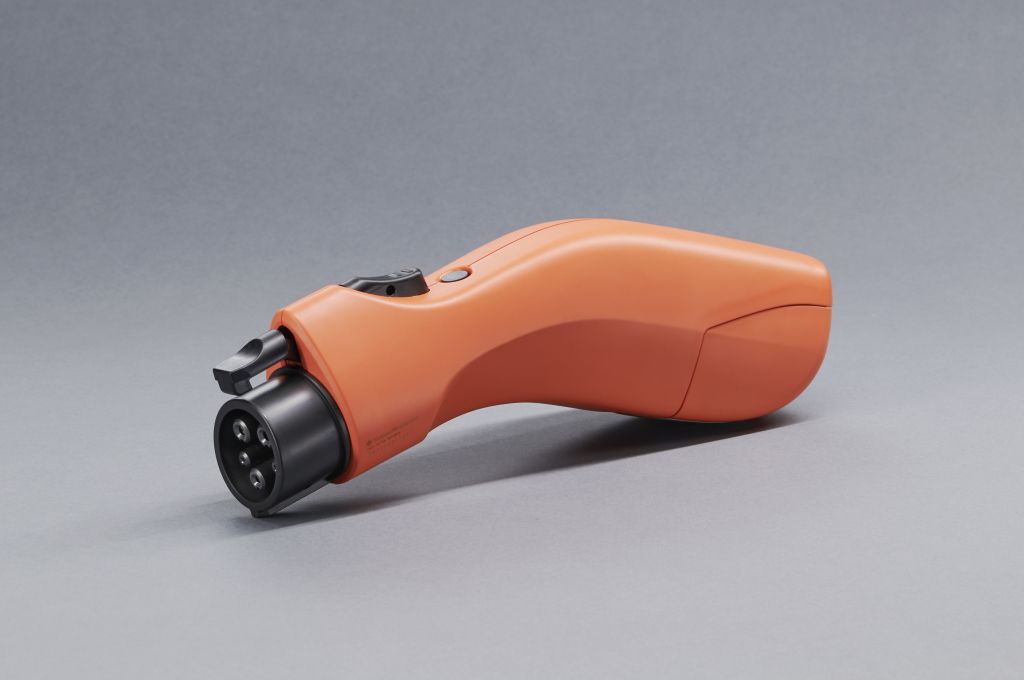

The new RAV4 comes with a maximum of 1,500 W (AC 100 V) external power supply function as standard equipment that are useful during blackouts and other emergencies, and for outdoor leisure activities. In addition to an accessory electrical socket in the luggage compartment, it is also equipped with a vehicle power connector which can be plugged into the regular charging inlet at the rear (right) of the vehicle for use as an external power socket.

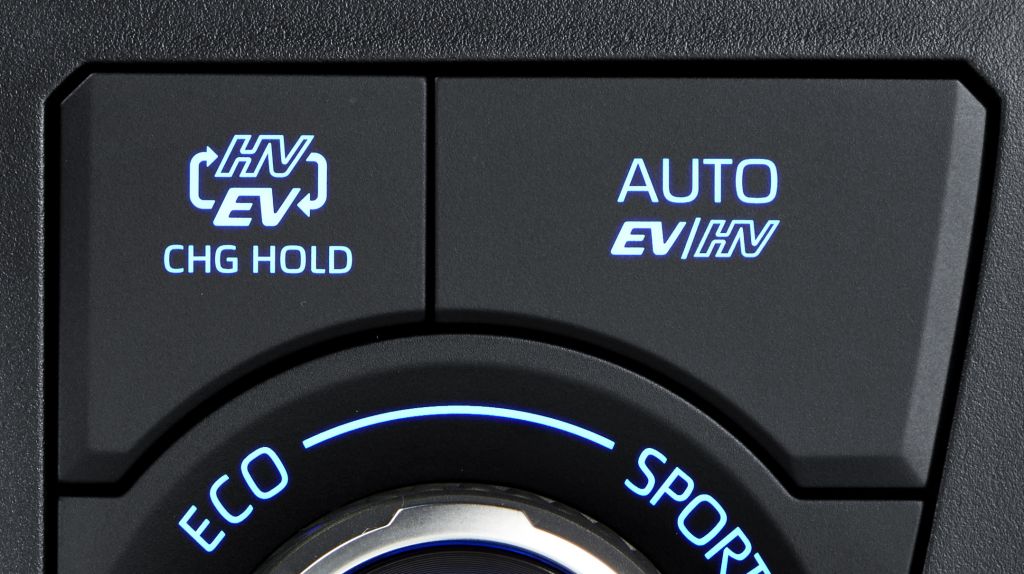

It offers two settings, either BEV or HEV external power supply mode, which can be selected according to the intended purpose. BEV mode only uses power from the battery, whereas HEV mode starts the engine if the remaining battery power is too low, enabling approximately three days' of power supply on a full gasoline tank.

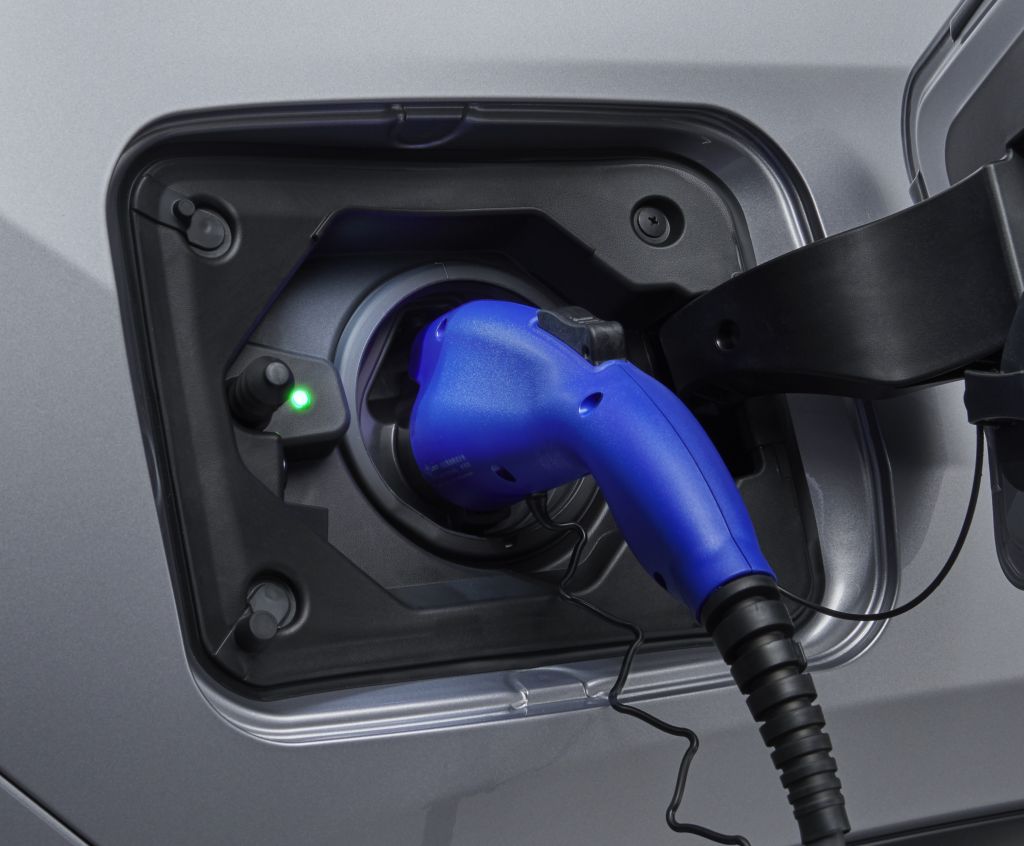

The RAV4 is readily able to provide regular power supplies at home or outside as a standard feature. The supplied power cable (both AC 100 and 200 V) can be connected to an electrical socket for recharging. Away from home, the PHEV recharge support can be used to charge at G-stations located at around 4,200 Toyota dealers, and at around 10,800 other regular charging points across Japan.

Charging methods and time needed



Charging method Regular charger (standard equipment)
Single-phase AC 200 V/16 A Single-phase 100 V/6 A
Time needed for charging Approximately 5 hrs 30 mins. (full charge) Approximately 27 hrs (full charge)
Requirement of electrical installation work Required Not required

Fitted with a remote-controlled air conditioning system. Air conditioning can be switched on using a smartphone application or a smart key. The car interior can be heated or cooled for up to 20 minutes, using electricity from the lithium-ion battery.

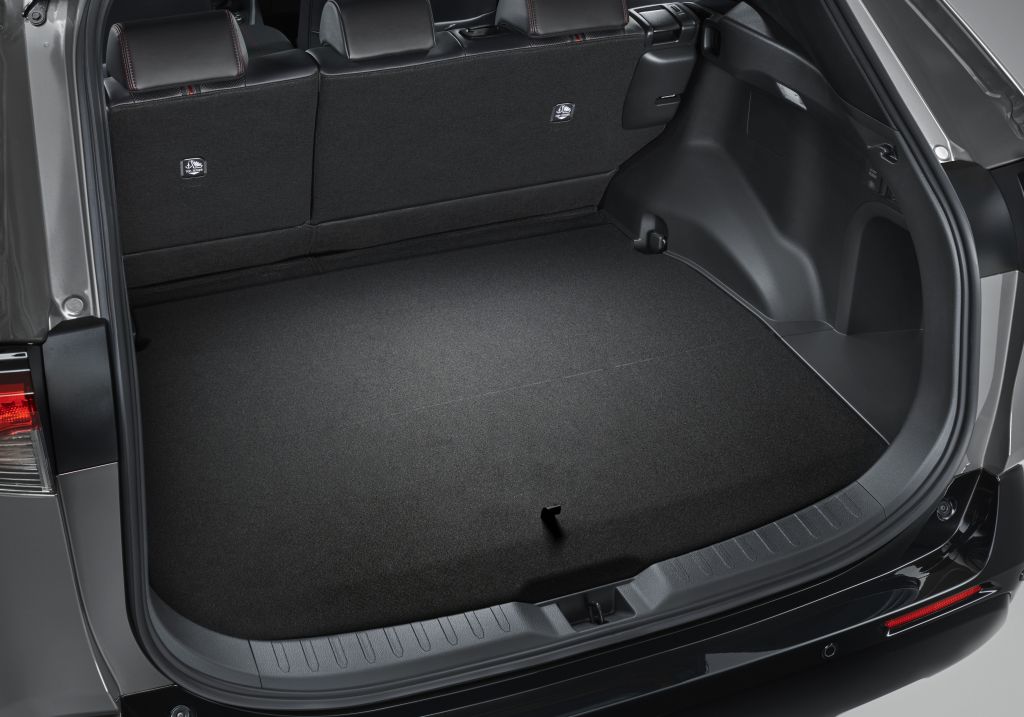

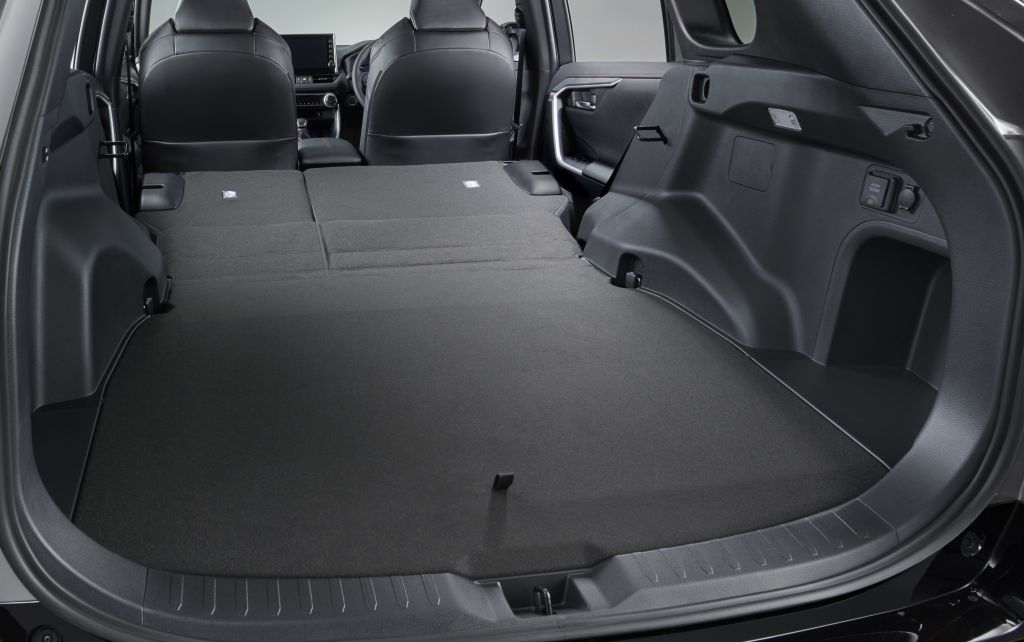

Even with the inclusion of a large lithium-ion battery and an emergency spare tire, the new RAV4 provides 490 L (VDA measurement method) of luggage storage space, more than ample for a SUV.

Refined, sporty design exclusive to RAV4 PHEV

Exterior design

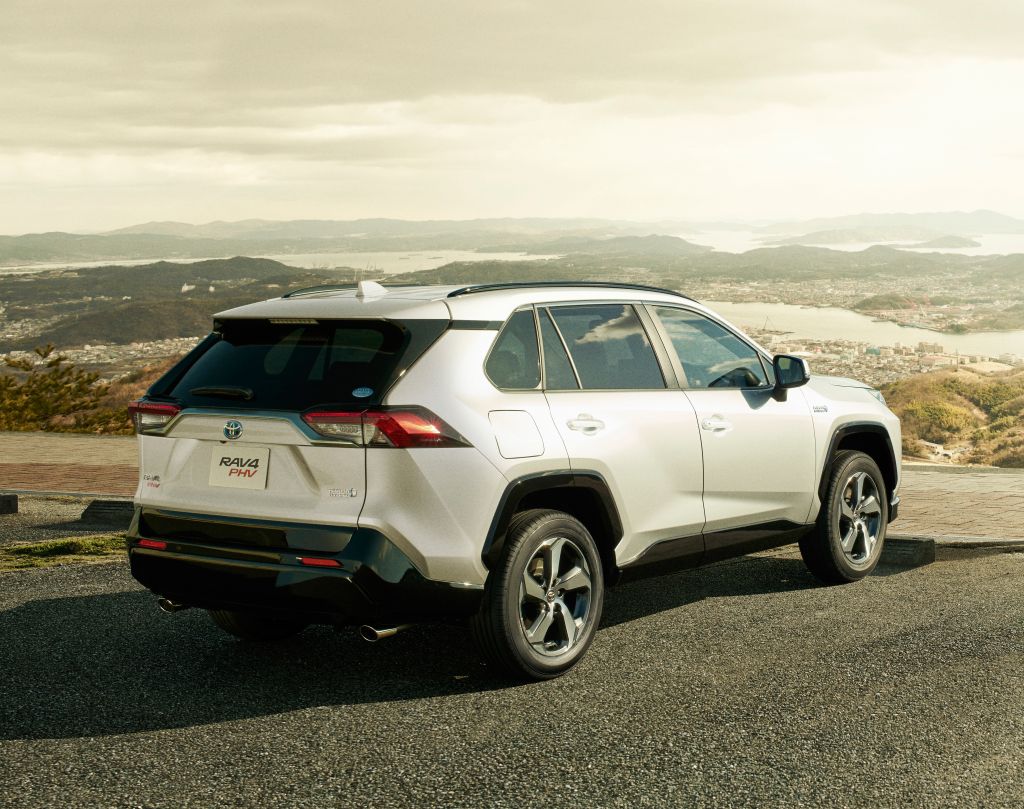

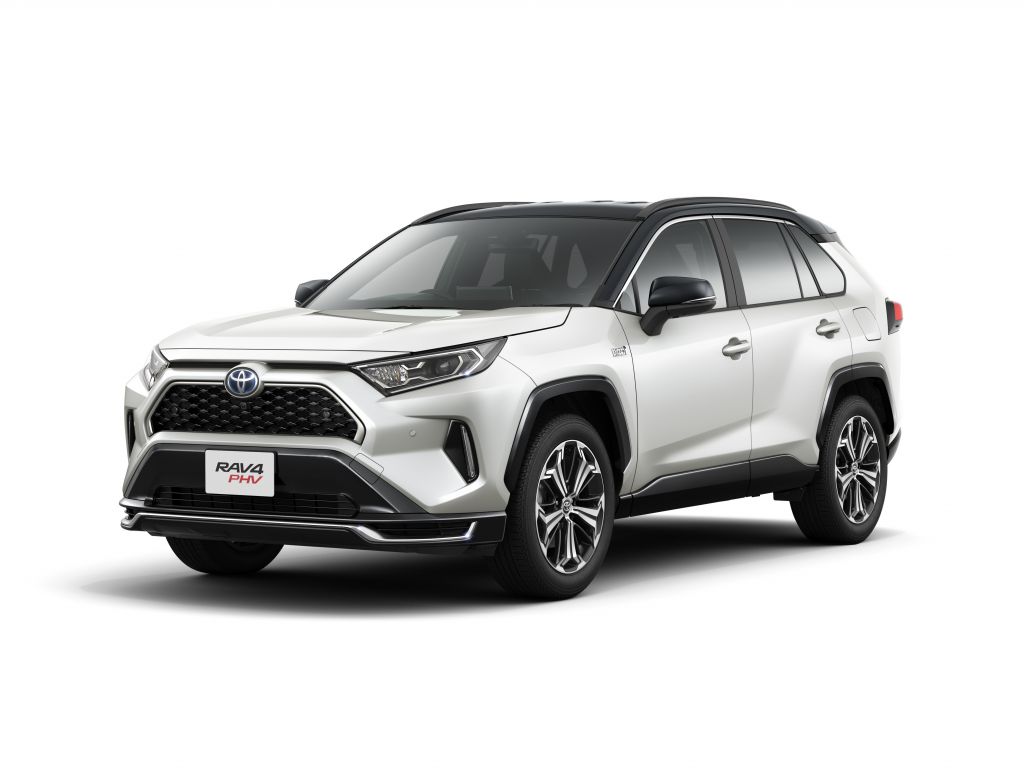

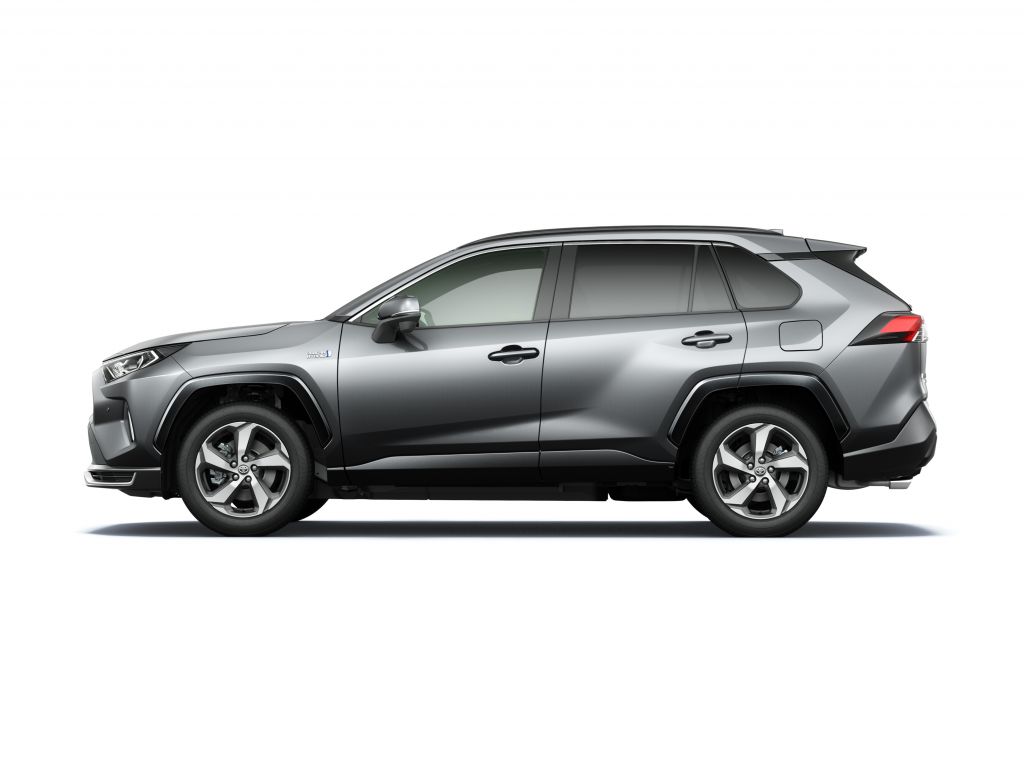

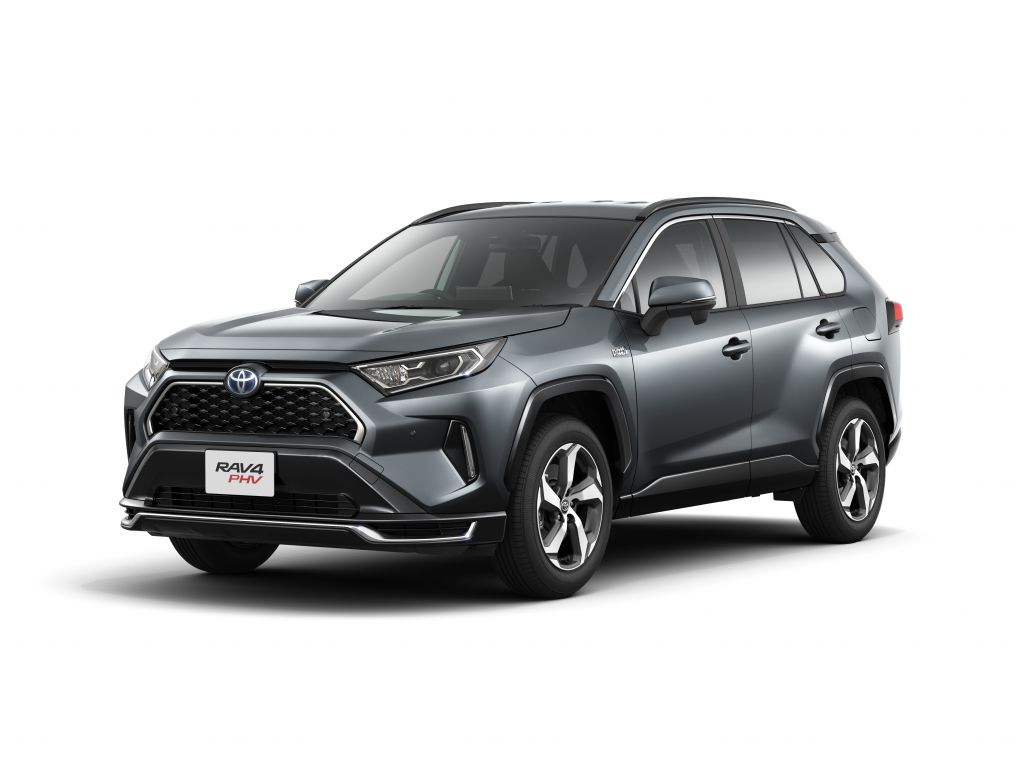

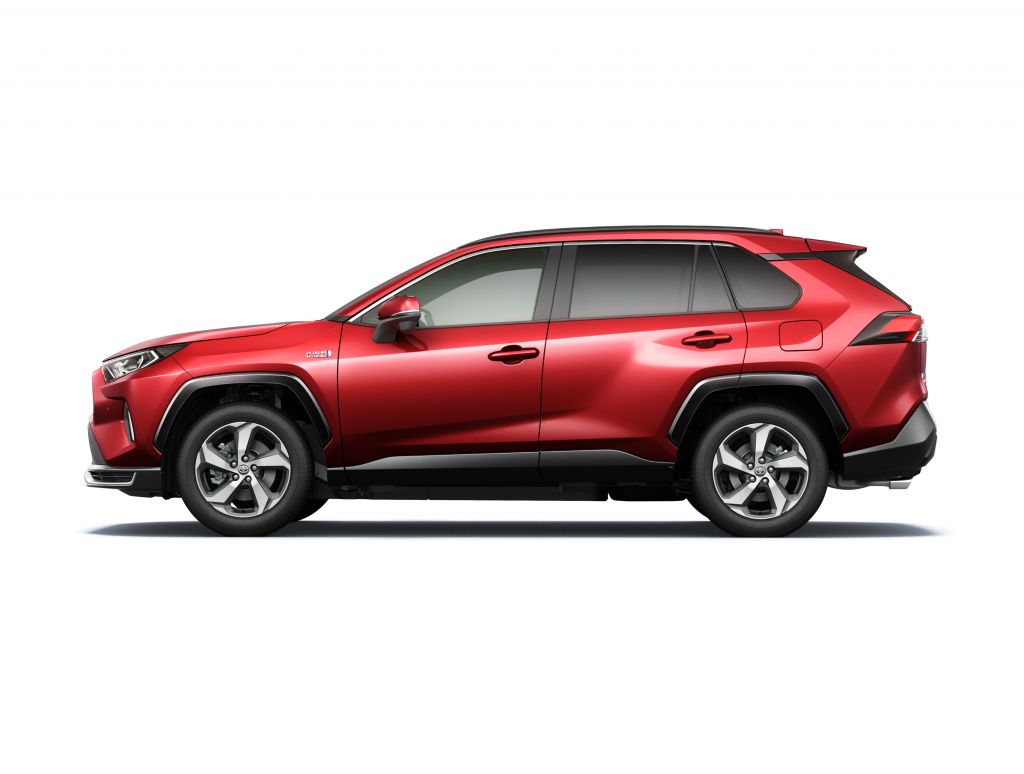

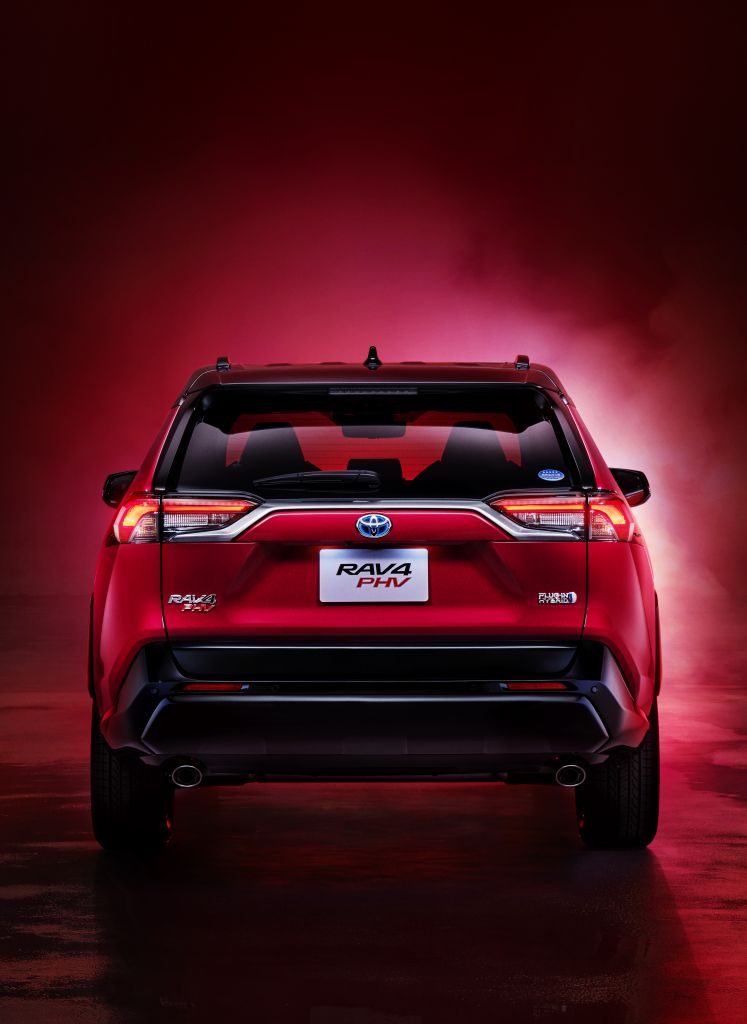

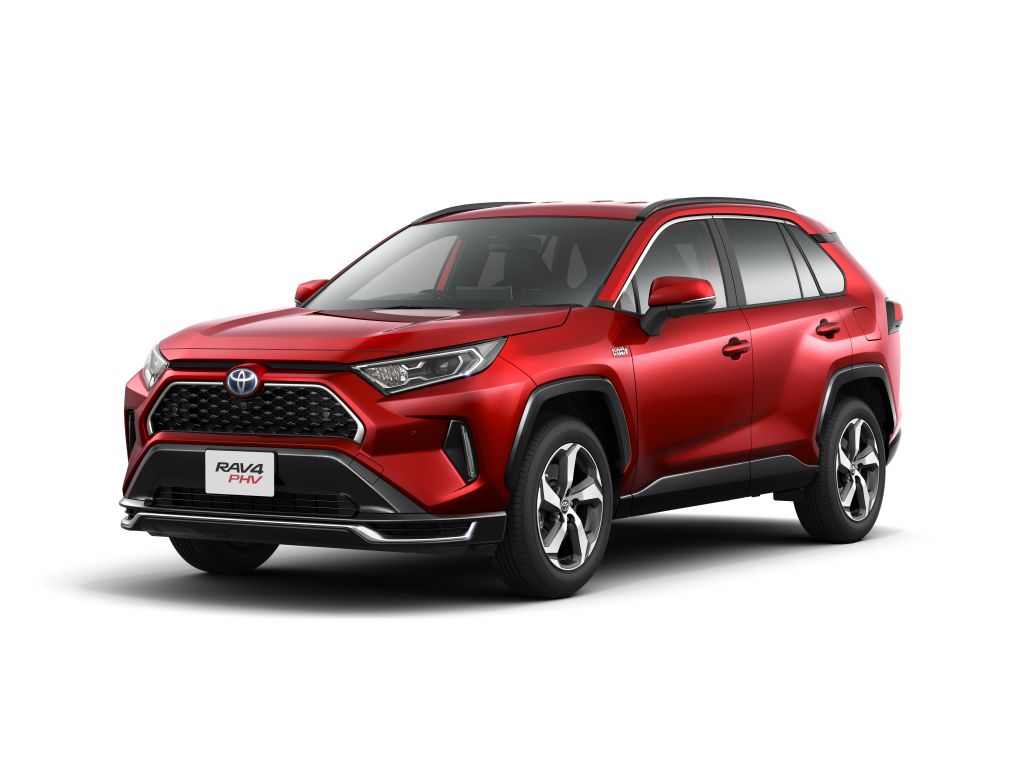

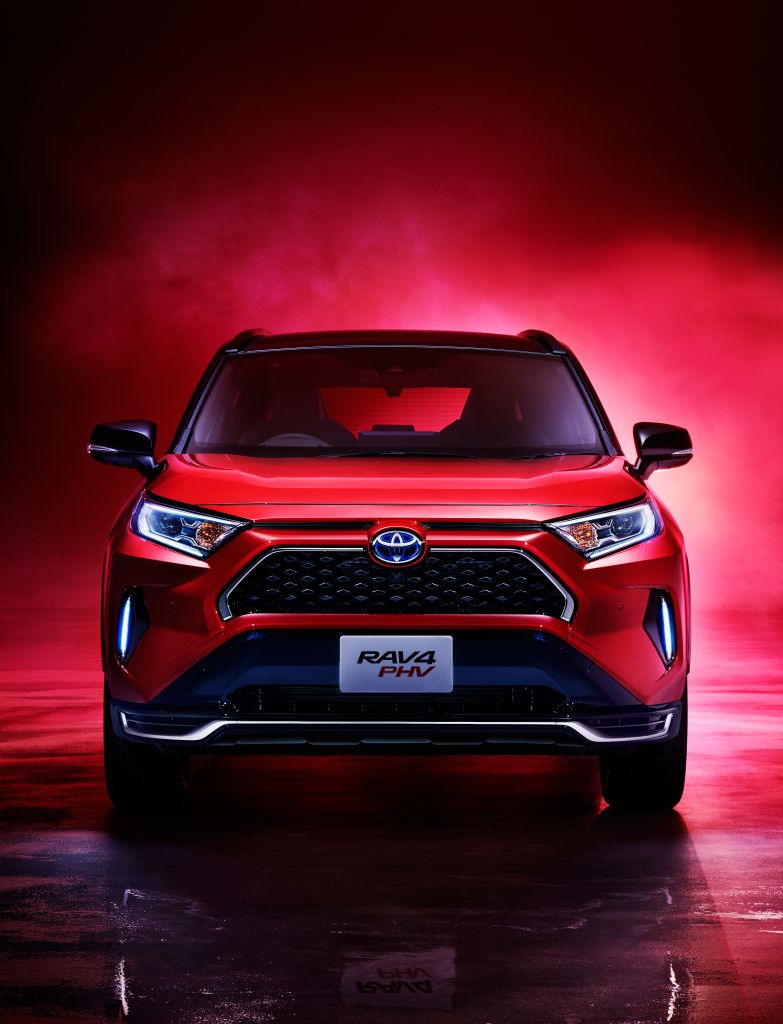

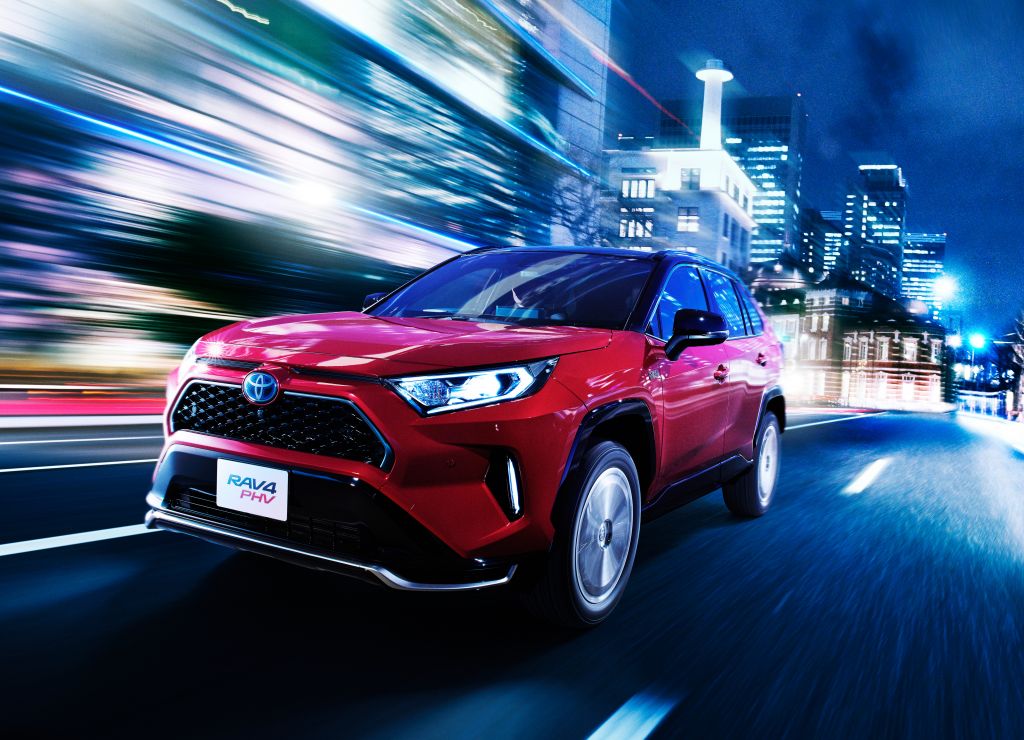

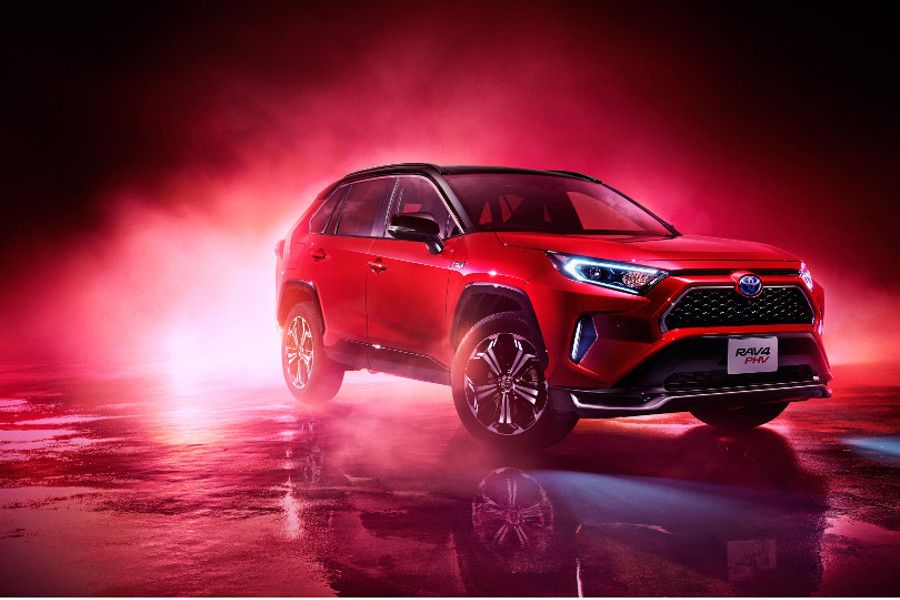

As the leading model in the RAV4 line-up, the front perspective strongly projects an advanced, sporty image. The front grille and lower mall reveal the distinctiveness of the RAV4 PHEV, while the low center of gravity enhances the vehicle's strong sporty appeal. Special LED day lights boost the advanced appearance.

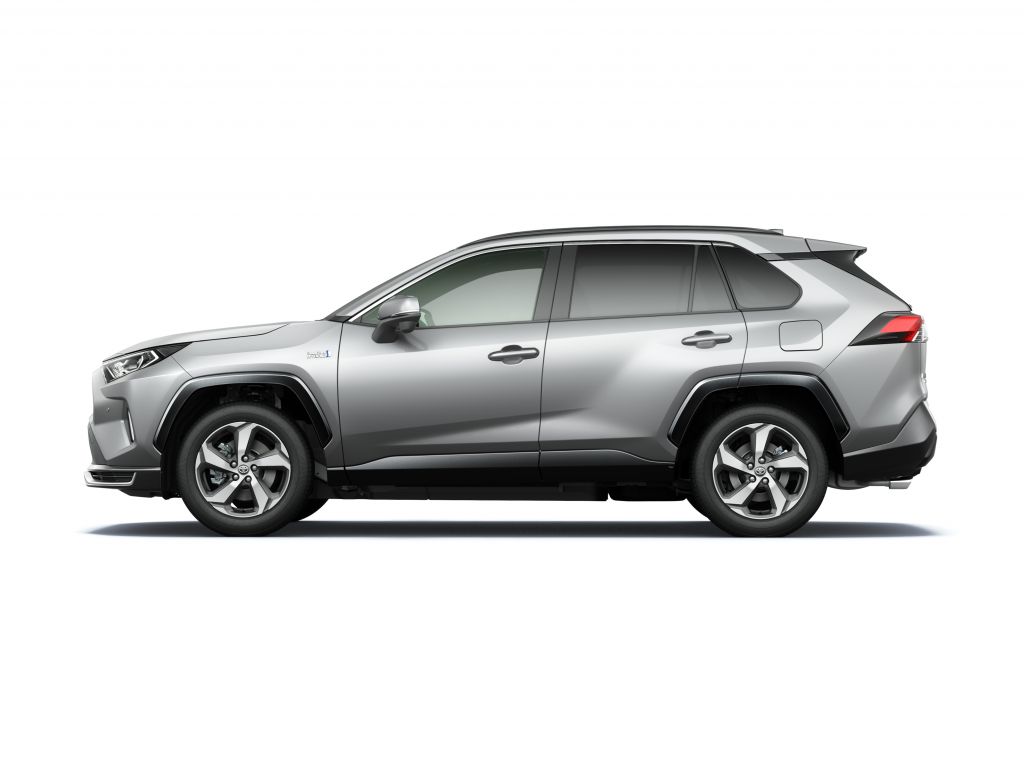

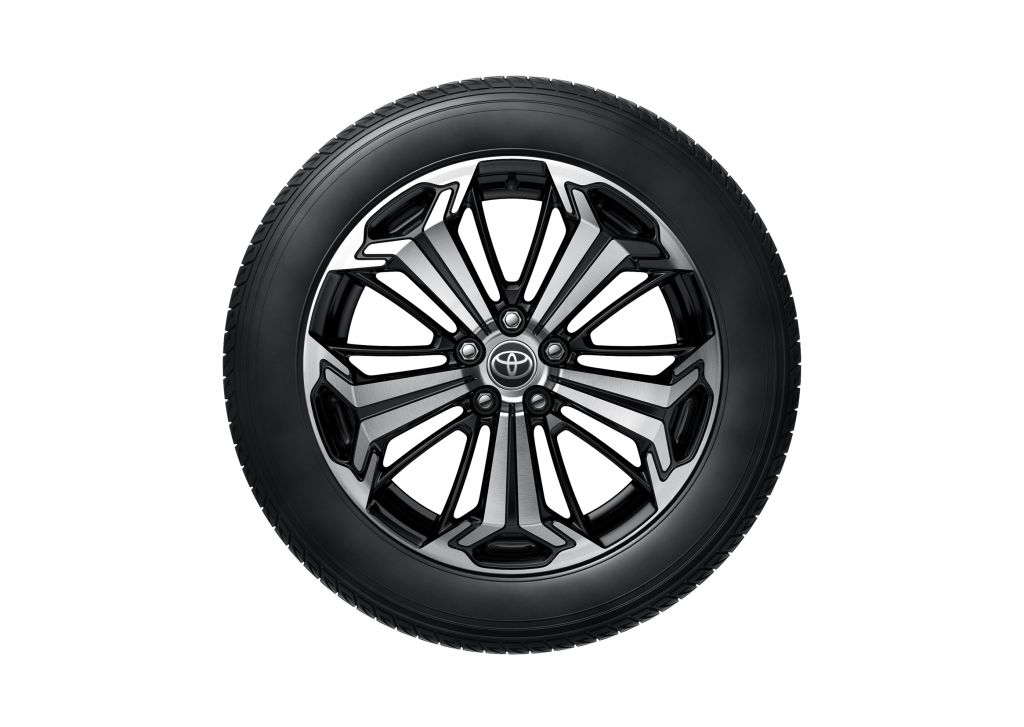

The vehicle is fitted with newly designed 19-inch RAV4 aluminum wheels. The machine-cut highlight spokes and black-enameled sides bestow a refined and luxurious appearance suited to city driving.

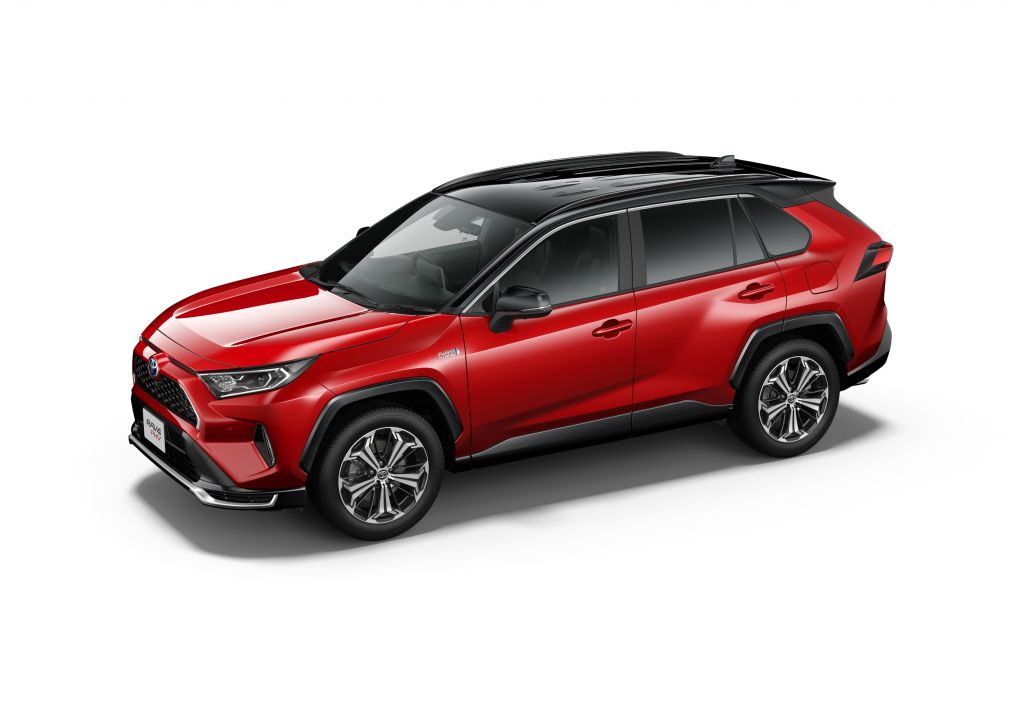

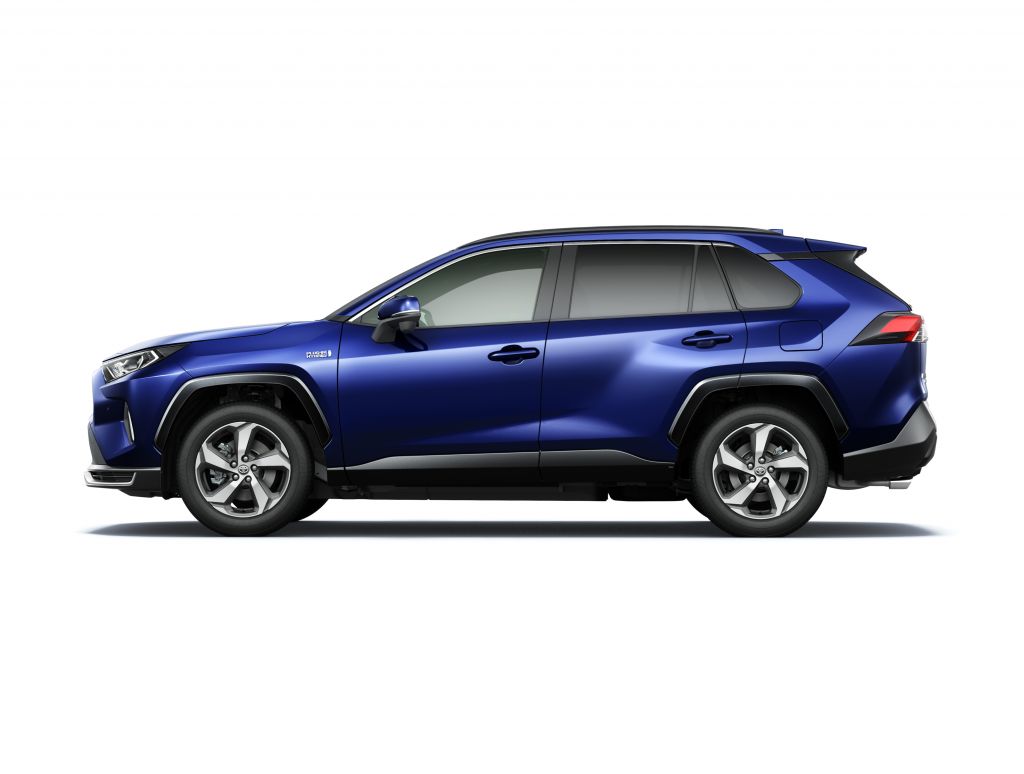

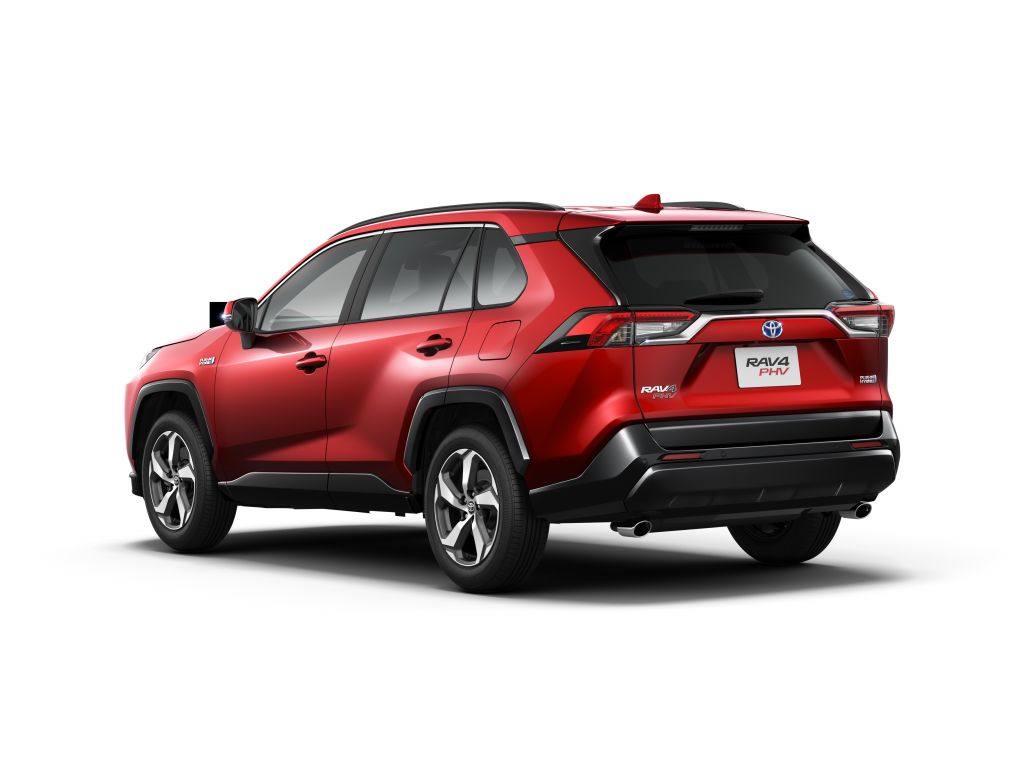

The exterior uses six colors, including Emotional Red II, exclusive to RAV4 PHEV. The lower body combines Attitude Black Mica to complete the sporty finish of the exterior.

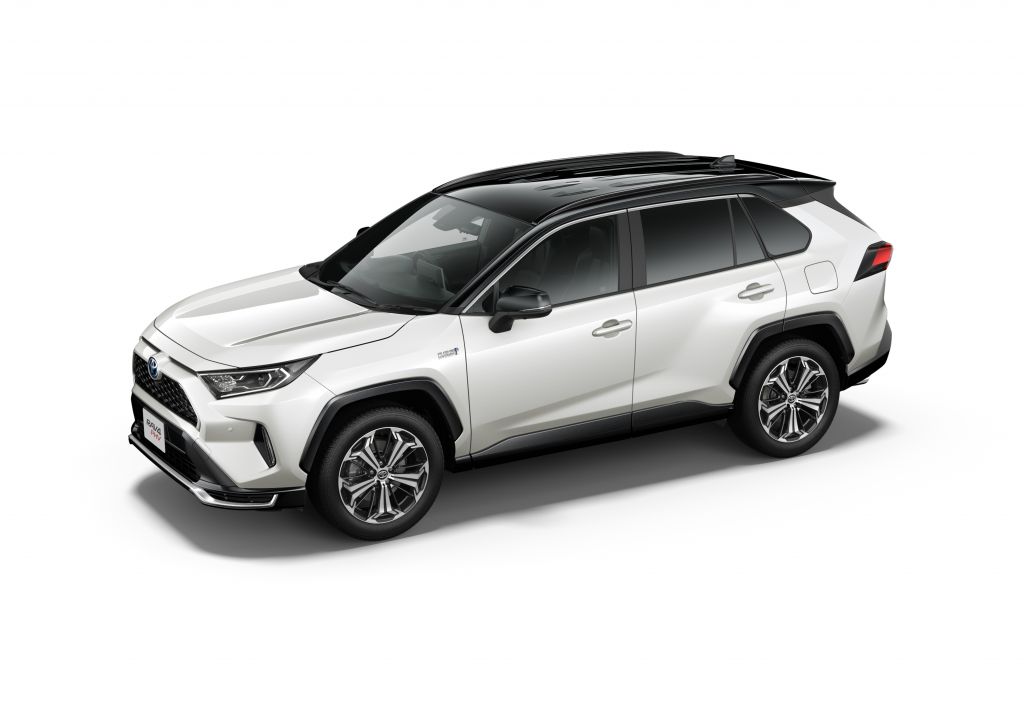

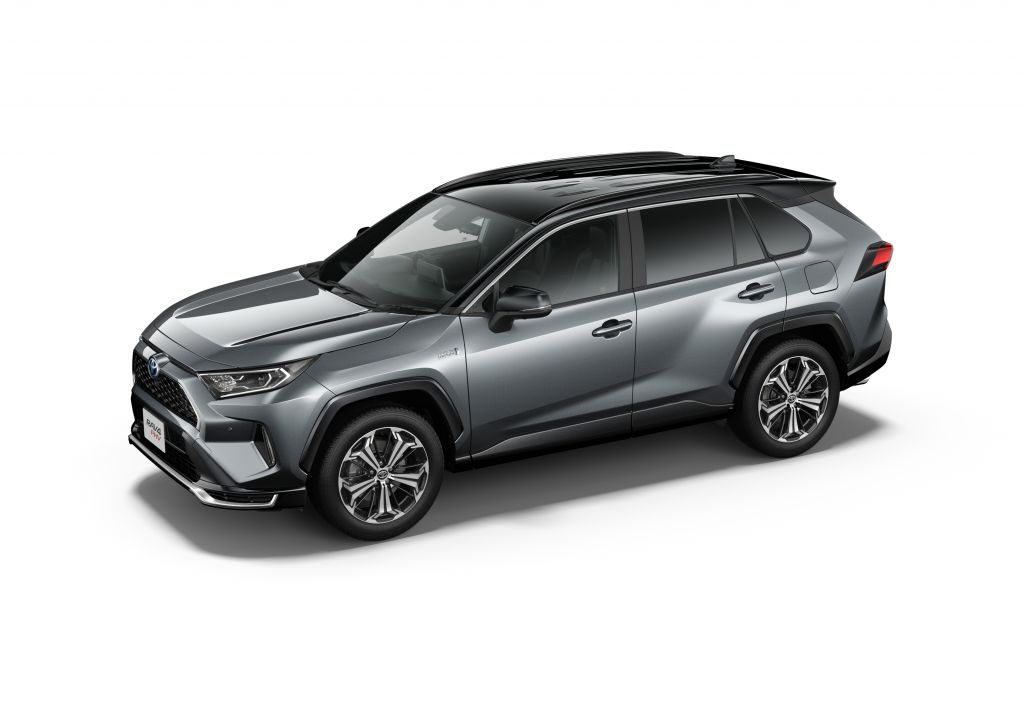

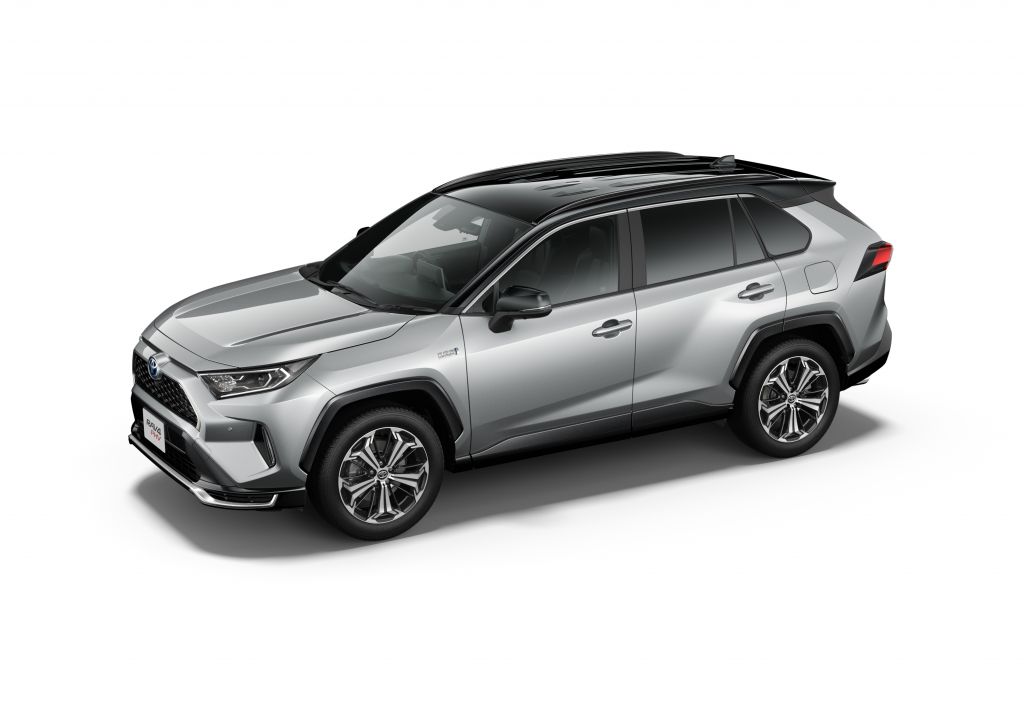

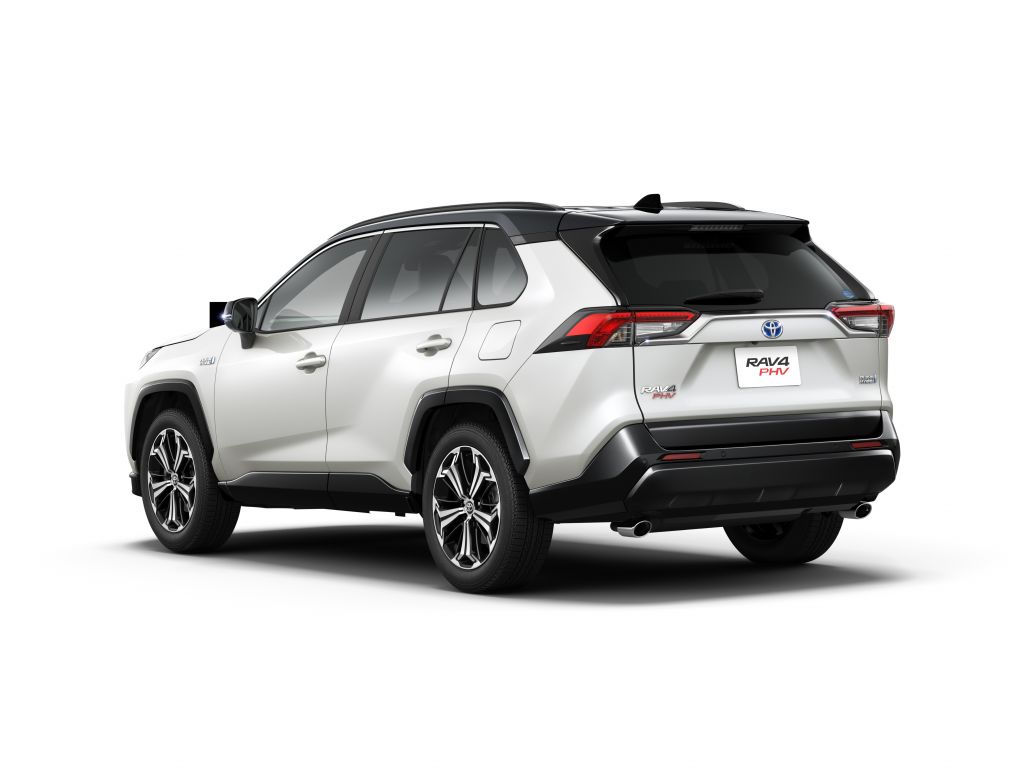

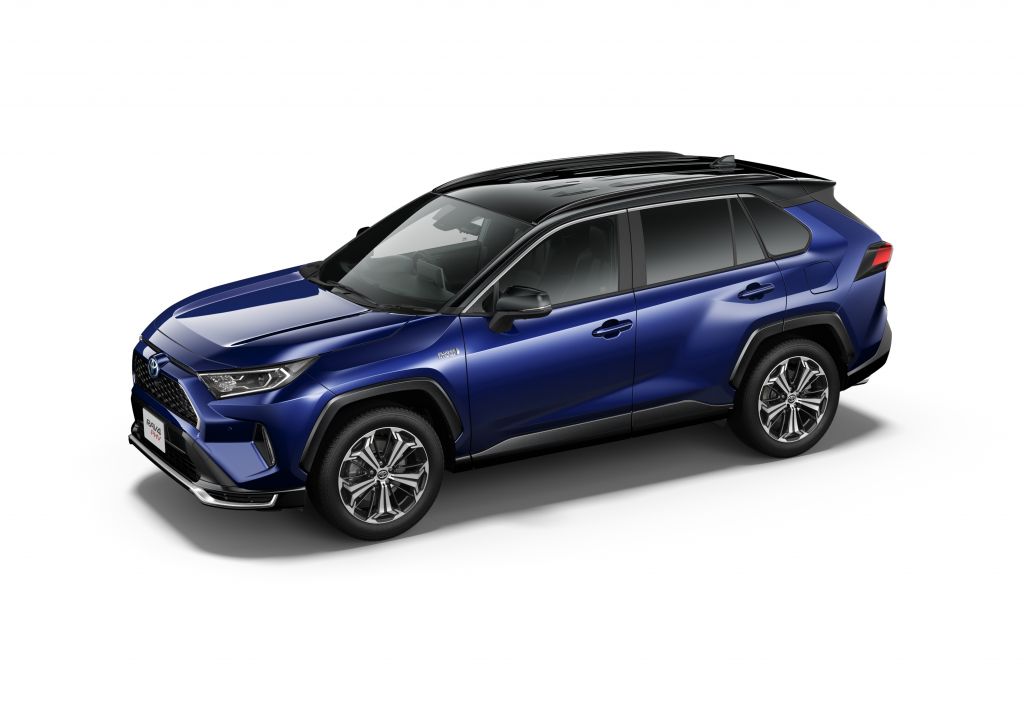

The exclusive Black Tone paints are part of the two-tone setting in a total of five combinations. Two-tone coloring coordinates Attitude Black Mica for the lower body, roof, and door mirrors. The combination perfectly expresses RAV4's cosmopolitan image.

Interior design

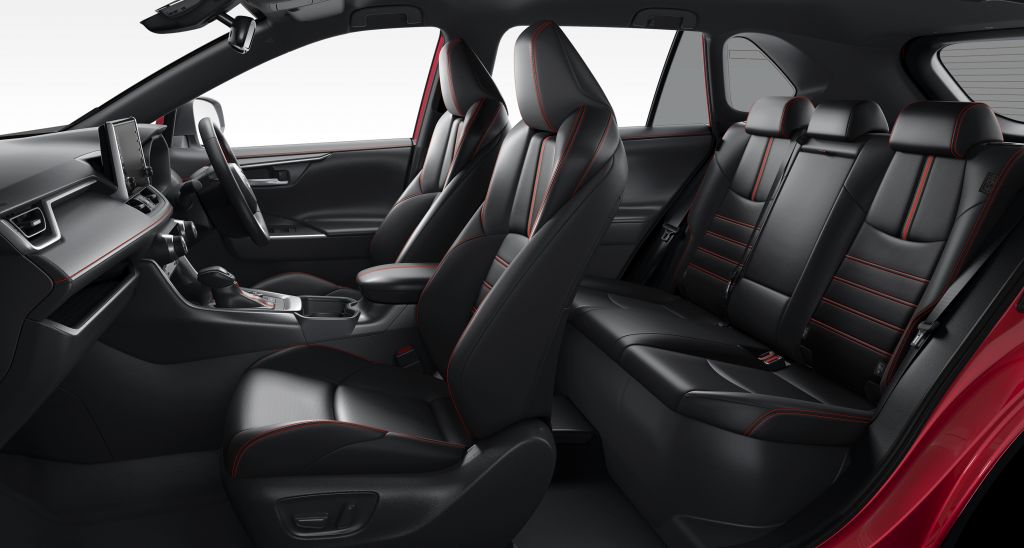

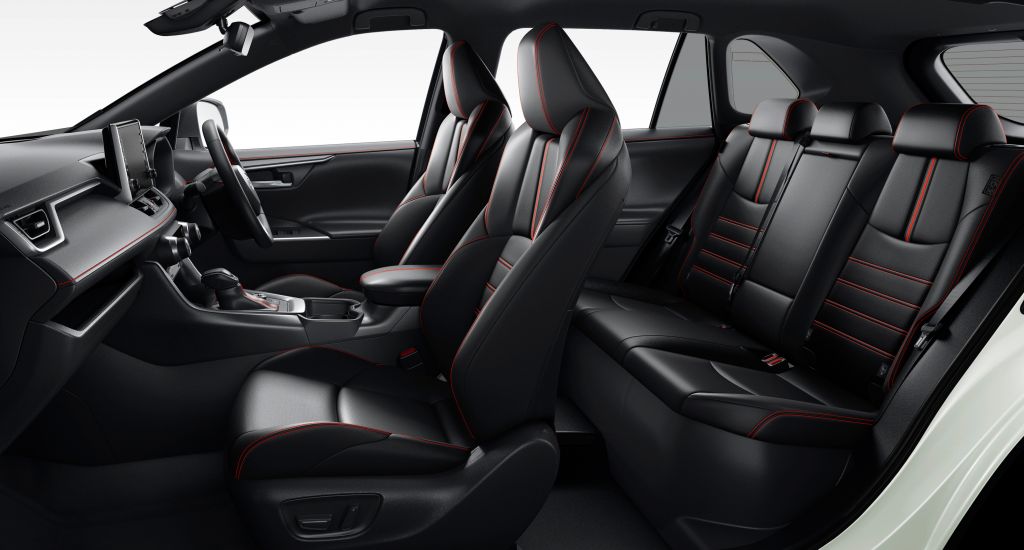

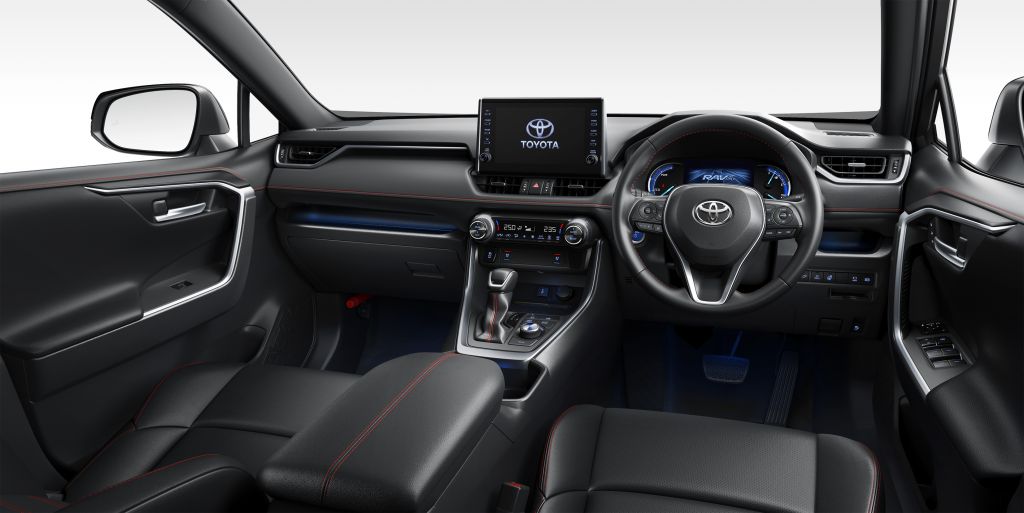

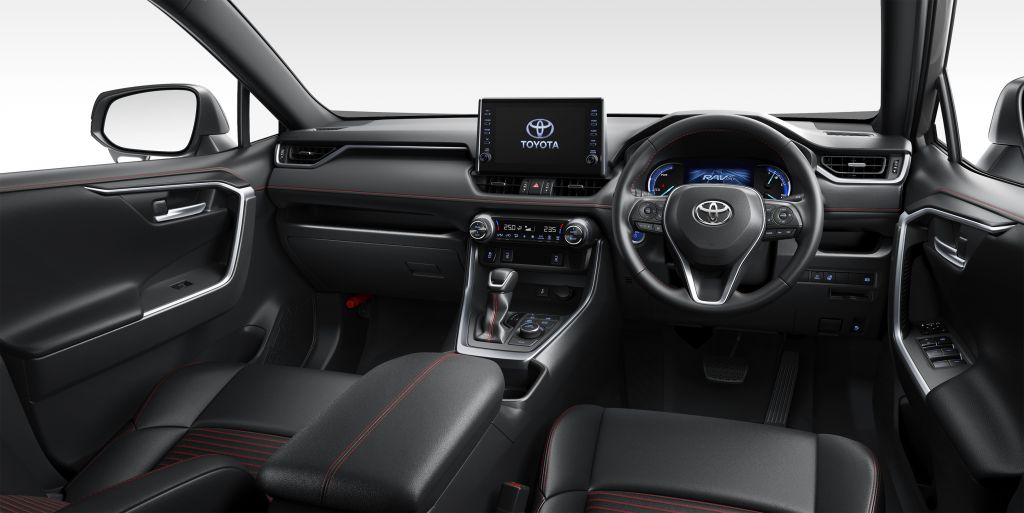

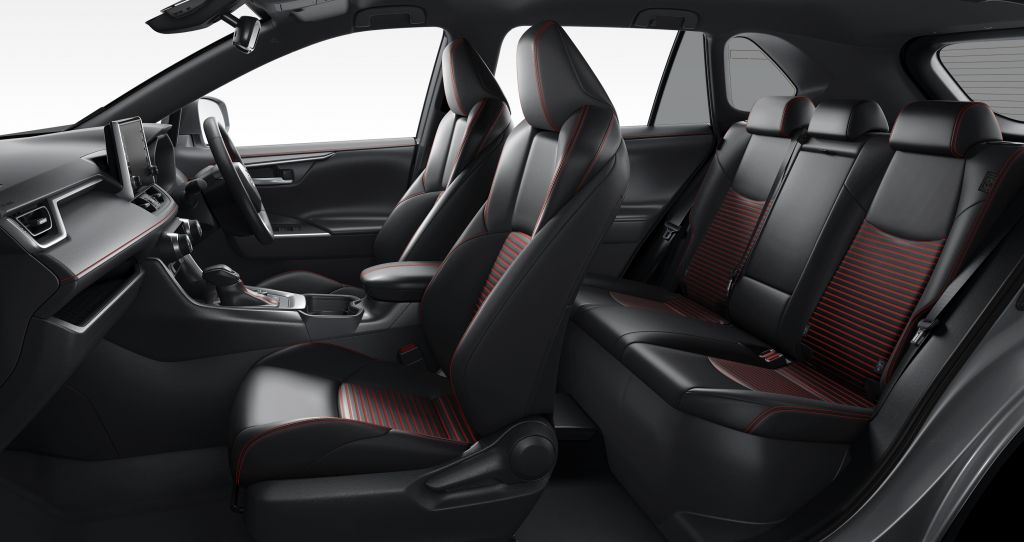

The interior, including ceiling, pillars, and open tray, are unified with black, to emphasize the sportiness, combined with red stitching, for a luxurious finish. The interior is coordinated with red stitching on the instrument panel, door trim, seats, steering wheel, shift boots, and center console.

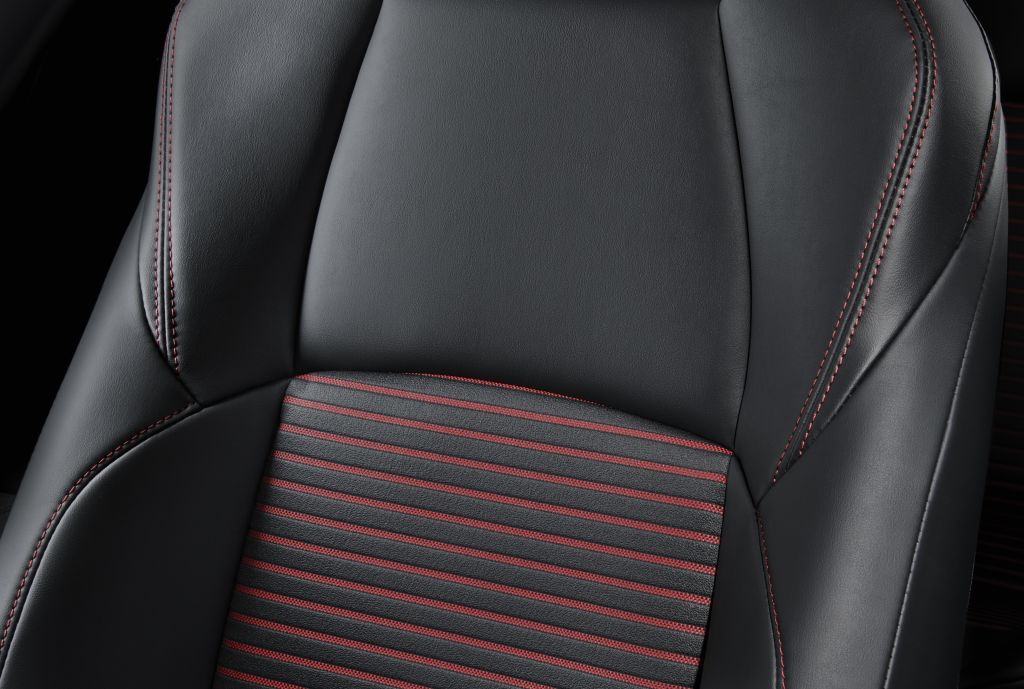

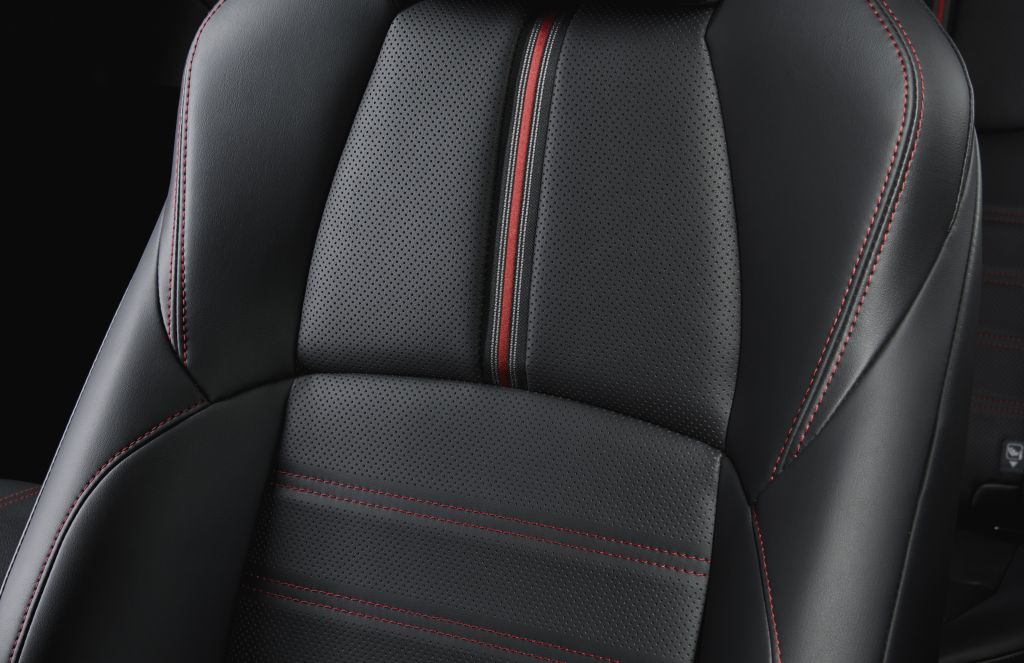

Synthetic leather sports seats are standard equipment for all vehicles. Black Tone and G "Z" incorporate lateral underlying tone quilting design that emphasize the nuances, combined with red ribbon, for a strongly luxurious appearance. For its main fabric, "G" also features a REZATEC®, combining the comfort of fabric with the high quality appearance of leather, to enhance the sporty feel of the seats.

Advanced fixtures for a safe, secure, comfortable, and convenient drive

Comfort and convenience

A large 9-inch Display Audio (DA) and the DCM are standard equipments that can be used with connected services for greater convenience and peace of mind.

In addition to SmartDeviceLinkTM, it now features Apple CarPlay and Android AutoTM as standard equipments, enhancing connectedness with smartphones. Maps, phone calls, messaging, and music applications can be used through Display Audios by connecting smartphones with a USB cable.

Comfortable heated seats are provided for drivers and front passenger seats, and seat heaters are standard equipment on the left and right rear seats. Furthermore, the Black Tone and G "Z" driver and passenger seats feature a ventilation function to improve comfort.

Safety and security

The new RAV4 comes with Toyota Safety Sense, which employs a pre-collision safety system that detects pedestrians at day and night, as well as cyclists during the day. It is fully equipped with safety equipment for safety and peace of mind, such as Intelligent Clearance Sonar with Parking Support Brakes (Stationary Objects) that helps reduce and/or mitigate damage from collisions during low-speed driving in parking lots, etc.

The Display Audio displays a panoramic image of the vehicle surroundings with a bird-eye view, supporting rear visibility and enhancing safety by enabling viewing of blind-spots.

The Head Up Display (HUD) helps to prevent driver fatigue by reducing the need for eye movement.

Source of information

Toyota and ProfiBusiness.world

Date

June 11, 2020
